Pneumatic plug

PNEUMATIC PLUGS WITH ENLARGED BY-PASS - DESCRIPTION : Inflatable pneumatic plug manufactured out of high thickness and high resistance rubber for gravity-flow pipelines with enlarged by-pass ND .....mm for pipes having internal diameter from .....mm up to .....mm

PNEUMATIC PLUGS WITH STNDARD BY-PASS - DESCRIPTION : Inflatable plug manufactured out of high thickness  and high resistance rubber for gravity-flow pipelines with standard by-pass ND .... mm for pipes having internal diameter from .....mm up to .....mm

Download the Catalogue for prices

INFLATABLE PNEUMATIC TEST PLUGS FOR GRAVITY-FLOW PIPELINES - DESCRIPTION : Inflatable pneumatic plug to temporarily block gravity-flow or test pipelines in compliance with the Regulations EN 1610, manufactured out of high thickness and high resistance rubber, for pipes having internal diameter from.....mm up to ......mm

INFLATABLE TEST PLUGS FOR SMALLER DIAMETER PIPELINES MOD. ZM - DESCRIPTION : Inflatable plug to temporarily block gravity-flow or test pipelines for smaller diameter. All plugs are made of natural and synthetic rubber compound and are equipped with a yre inflation valve; for pipes having internal diameter from .....mm up to .....mm

Download the catalogue for prices

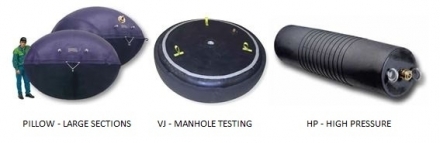

PNEUMATIC PLUGS FOR LARGE CROSS-SECTIONS PILLOW SERIES - DESCRIPTION : Inflatable pneumatic plug  to temporarily block gravity-flow or test pipelines for large sections in compliance with the Regulations EN 1610, manufactured out of high thickness and high resistance rubber, for pipes having internal diameter from ....mm up to .....mm. by-pass 2"

PLUGS MOD. VJ FOR MANHOLES TESTING  - DESCRIPTION : Inflatable pneumatic plug to temporarily block gravity-flow or test manholes in compliance with the Regulations EN 1610, manufactured out of high thickness and high resistance rubber, for pipes having internal diameter from .....mm up to .....mm. by-pass 2"

PNEUMATIC PLUGS FOR HIGH PRESSURE MOD. HP 6 - 12 BAR - DESCRIPTION : Inflatable pleumatic plug to temporarily block gravity-flow or test pipelines with high pressures, in compliance with the Regulations EN 1610, manufactured out of high thickness and high resistance rubber, for pipes having internal diameter from ....mm up to .....mm. counter pressure ....bar

WATER TEST KIT

This test is regulated by UNI EN 1610 standards, method "W" and can be used to detect the leakage point of a pipeline that has not passed the air test or, more simply, as a run-off test. It differs from the ir test method as its takes much longer and also for the complex problems of procuring and disposing of the water necessary for testing, in particulr in the case of large diameters.

DESCRIPTION: Supply of water pipeline test kit for gravity pipes in accordance with UNI EN 1610 standard. The kit comprises: 2 stoppers with by-pass made of reinforced rubber, 2 inflation pipes complete with control panel, 1 adapter for stoppers with by-pass, 1 tansparent measurement pipe, 1 float.

AIR TEST KIT

This test is regulated by UNI EN 1610 standards, method "L", and is the simplest, most cost-effective test. If the pipes do not pass the test, the water test must be carried out as described in more detail in the standard.

DESCRIPTION: Supply of gravity pipeline air test kit in compliance with UNI EN 1610. The kit comprises: 1 blind stopper and 1 by-pass stopper both made of reinforced rubber, 2 inflation hoses complete with control panel, 1 adapter for stopper with by-pass, 1 measurement tube with gauge, 1 tube for pressurizing the pipeline with related fittings

Download the catalogue for prices and "how to proceed to do the test"
